We bridge the gap between high-voltage electrical sizing calculations and real-world civil construction. Deliver uncompromised engineering packages optimized for peak yield and zero on-site structural clashes.
Comprehensive multi-terrain engineering adapted to diverse microclimates, structural capacities, and grid interconnects.
Multi-megawatt centralized & decentralized landscapes. Incorporates high-resolution topographical contour grading, flood plain drainage matrices, and central/string inverter substation zoning.
Engineered for flat RCC slabs, pitched trapezoidal sheets, and standing seam roofs. Ballasted or non-penetrating clamps designed strictly within building structural dead-load envelopes.
Dynamic astronomical tracking logic maximizing generation yield by up to 22%. Features true 3D backtracking geometry to eliminate row-to-row shading during early morning and late afternoon.
Specialized engineering for reservoirs, industrial ponds, and hydroelectric reservoirs. Waterbody bathymetric profiling, anchoring/mooring tension mechanics, and anti-corrosive marine cabling.
Containerized Battery Energy Storage Systems (BESS) coupled with hybrid inverters and diesel genset zero-feed synchronizers for industrial resilience and peak-shaving tariff optimization.
Elevated dual-utility structures for agricultural coexistence and EV charging canopies. High-clearance portal frames allowing tractor movement and integrated water collection drainage gutters.
Bankable documentation engineered for rapid statutory approvals, EPC procurement, and zero-defect commissioning.
Near-shaded scene generation, IAM optical losses, horizon profiles, and bankable generation documentation with 8760-hour yield records.
Precision module tilt/azimuth pitch matrices, spatial coordinates, structural clear spans, and perimeter statutory safety buffers.
Optimized series-parallel string configuration matching MPPT operating windows across extreme sub-zero to peak summer ambient thermal swings.
DC solar cable (4/6 mm²) and LT/HT aluminum XLPE sizing with short-circuit current calculations strictly capping total voltage drop below 1.5%.
Single Line Diagrams including ACDB, DCDB, inverter stations, VCB/ACB protection relays, isolators, dual metering, and transformer taps.
IS 3043 / IEEE 80 earthing grid design with touch and step potential risk mitigation, chemical earth pits, and IEC 62305 lightning protection.
Finite element analysis of cold-formed steel purlins, rafters, and columns under 150-200 km/h wind gusts, seismic zone loading, and dead loads.
Automated Detailed Project Reports (DPR) complete with cable schedule cut-lengths, hardware counts, and procurement-ready material lists.
Standard engineering firms deliver flat 2D AutoCAD lines. When contractors hit the job site, invisible clashes with existing pipelines, HVAC chillers, and parapet walls cause expensive project stalls and structural redesigns.

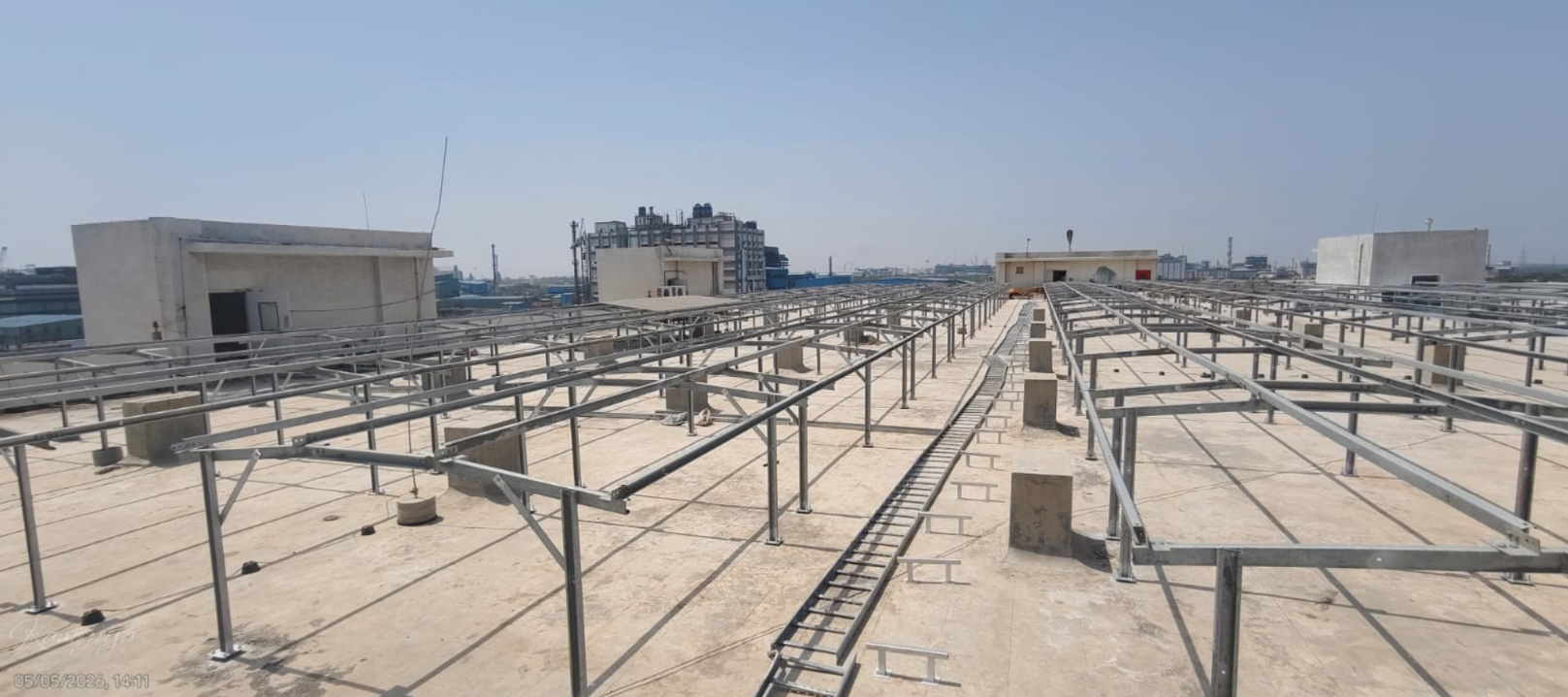

At **NVS-D LLP**, we construct your solar plant inside a digital 3D spatial twin before ground is broken. Every purlin, cable tray tier, inverter station, and perimeter shadow is modeled in continuous coordinate spaces.
Real-time MPPT string routing & civil collision verification
Every calculation sheet, single line diagram, and structural member delivered by NVS-D LLP undergoes multi-tier peer checks complying with national and international benchmarks:
Upload boundary coordinates or roof blueprints for an expedited 48-hour 3D engineering assessment.
